SL1

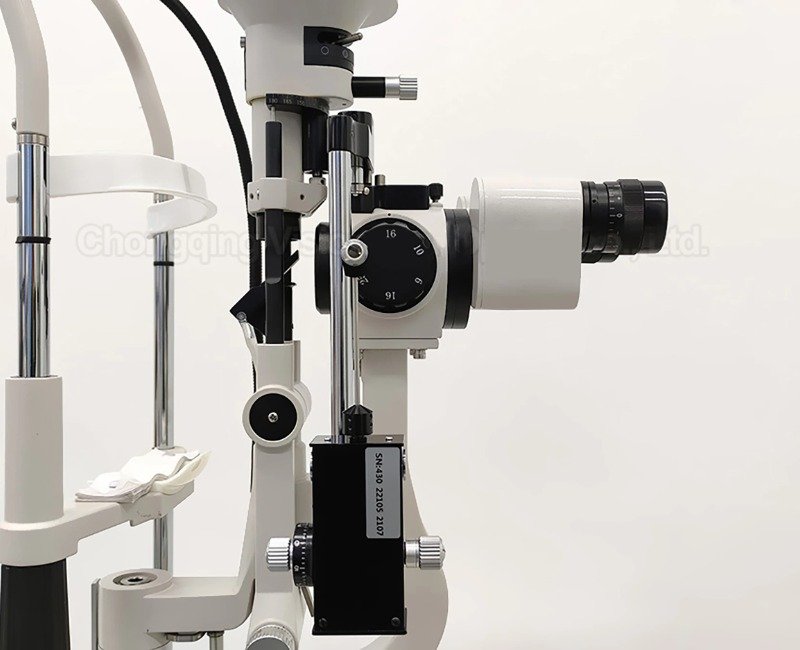

OCU-SL1 5-Step Slit Lamp
Key Features
Outstanding Optic Quality ensures a comfortable view
Parallel type Galilean system
LED illumination with long lifetime
5-step magnifications
Tower type slit lamp with broad beam, wide field and high depth of field
Interface for laser and applanation tonometer reserved
Technical Specifications
Model: | S5 |
Illumination Type: | Tower Type |
Illumination Source: | Imported LED Lamp |
Max Illumination Intensity: | 60000 Lux |
Microscope Type: | Parallel type, Galilean system |

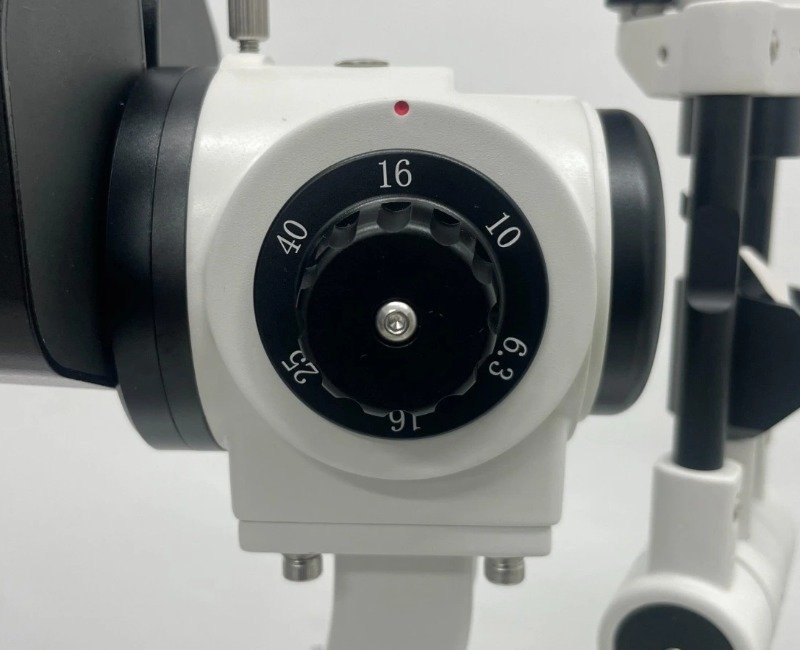

Magnification Changer: | Revolving drum |
Eyepiece: | 12.5X |
Magnification: | 6X, 10X, 16X, 25X, 40X |
Visual Field Diameter: | 6X: 33mm, 10X: 22mm, 16X: 14mm, 25X: 8.5mm, 40X: 5.5mm |
Diopter Adjustment: | -7D ~ +7D |
Pupil Range: | 52mm ~ 82mm |
Brightness: | Continuously adjustable |

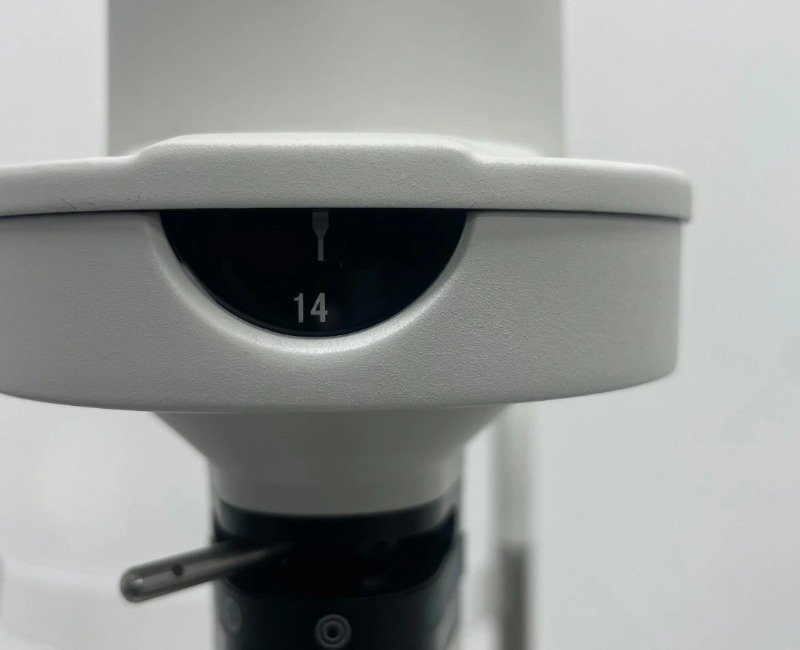

Slit Image Width: | 0mm ~ 14mm continuous |
Slit Image Length: | 1mm ~ 14mm continuous |
Slit Image Angle: | 0° ~ 180° continuous rotation |
Illumination Tilting: | 5°, 10°, 15°, 20° |
Slit Aperture Size: | Φ14, Φ10, Φ5, Φ3, Φ1, Φ0.2 mm & 1 ~ 14mm continuous |
Filter: | Heat absorption, Grey, Red-free (Green), Cobalt blue |
Fixation: | Red LED 3.5V |
Image Collector: | None |
Background Illumination: | None |
Input Voltage: | 70VA |
Input Power: | 100V ~ 240V, 48 ~ 62Hz |
External Packing: | Carton box |
Dimension: | 740 × 650 × 450 mm |
Gross Weight: | 23 kg |
