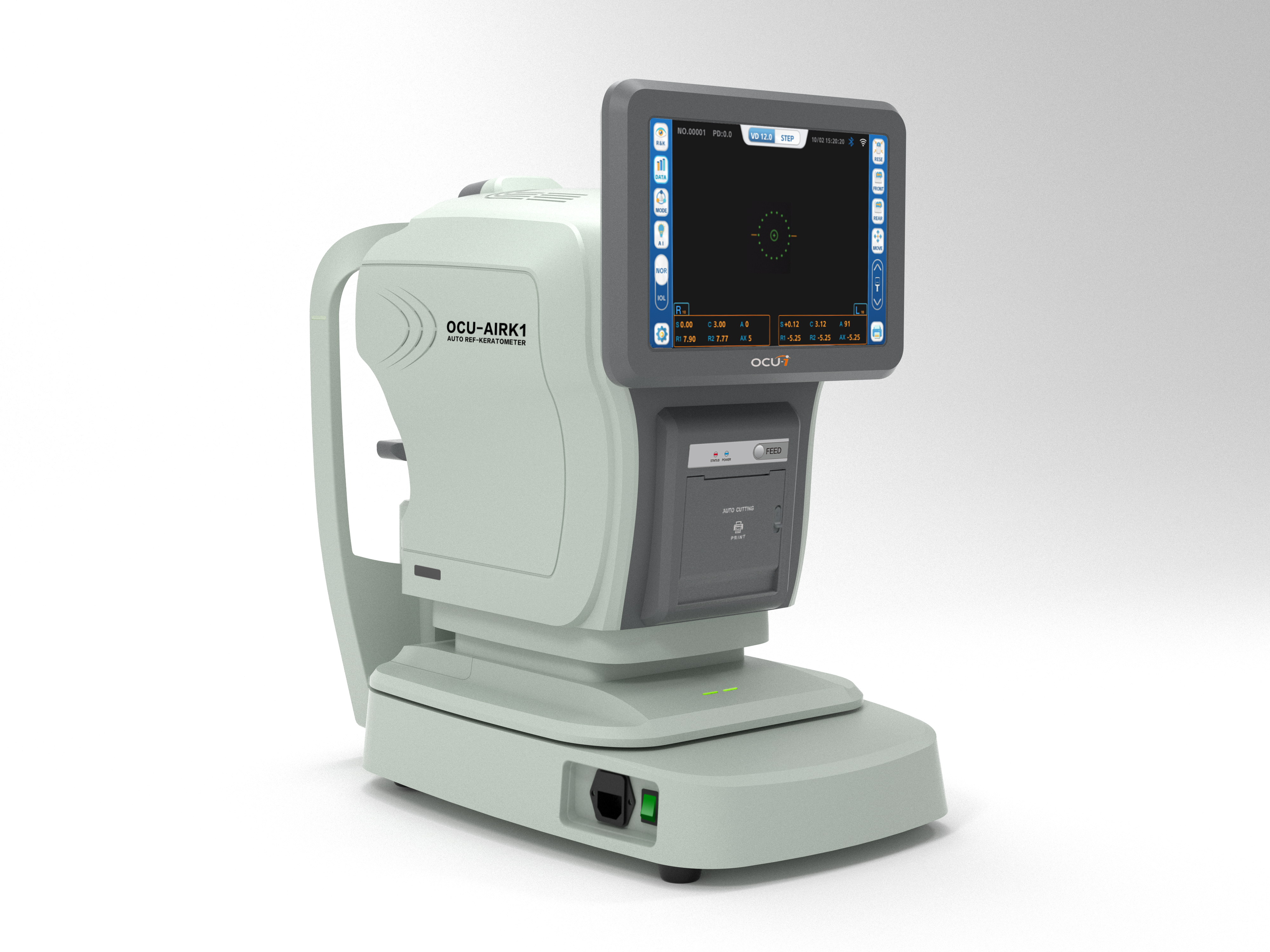

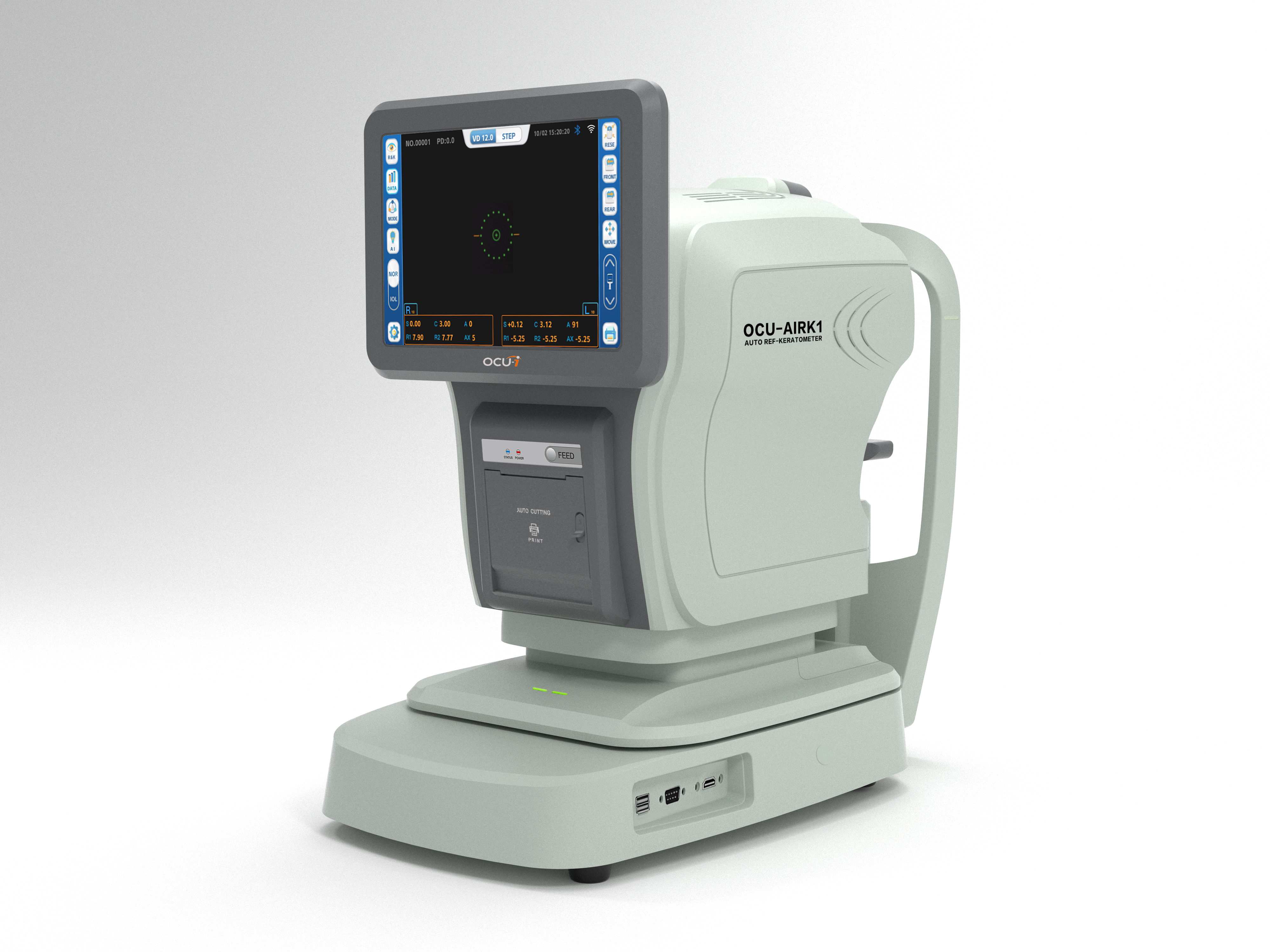

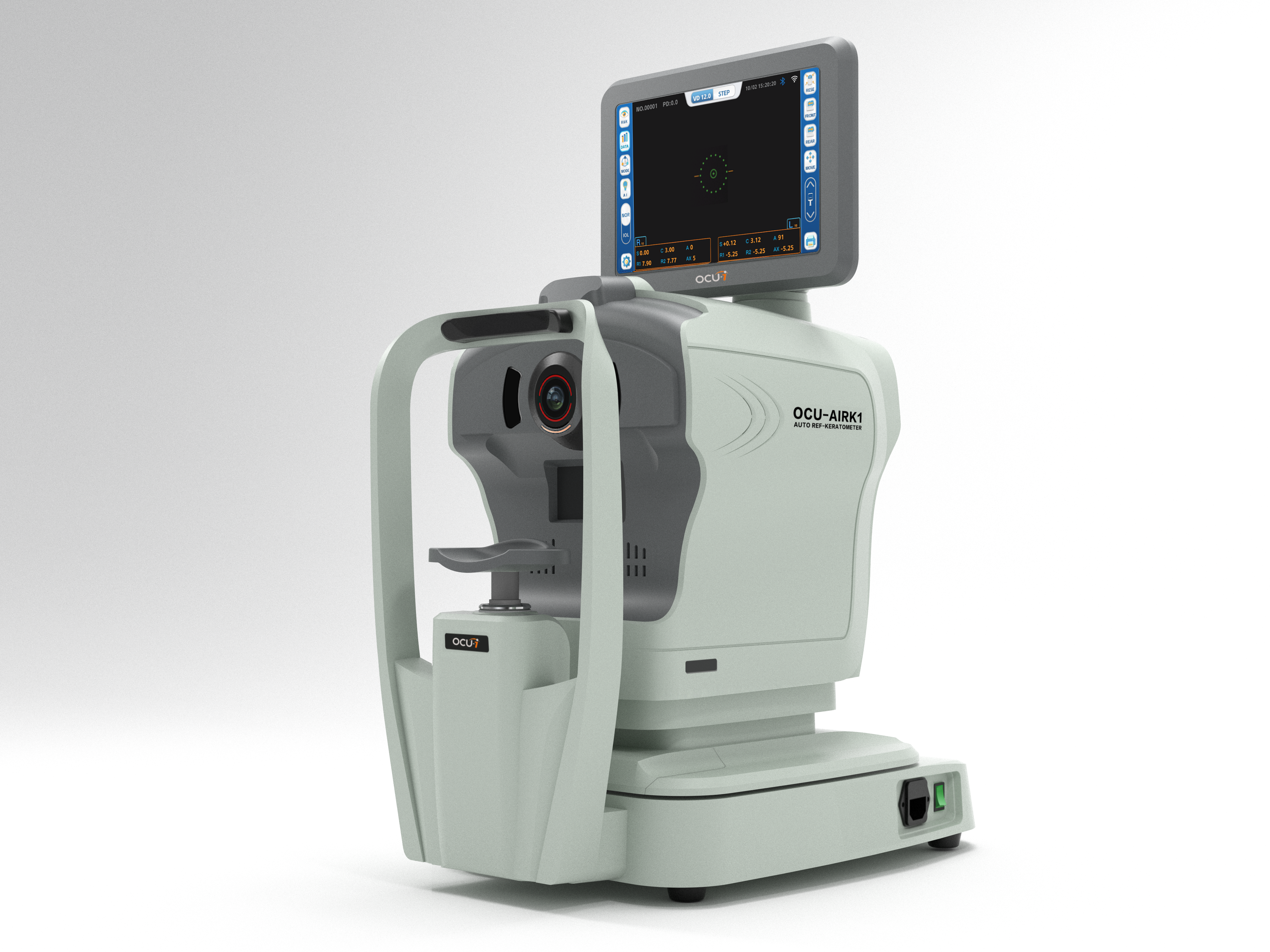

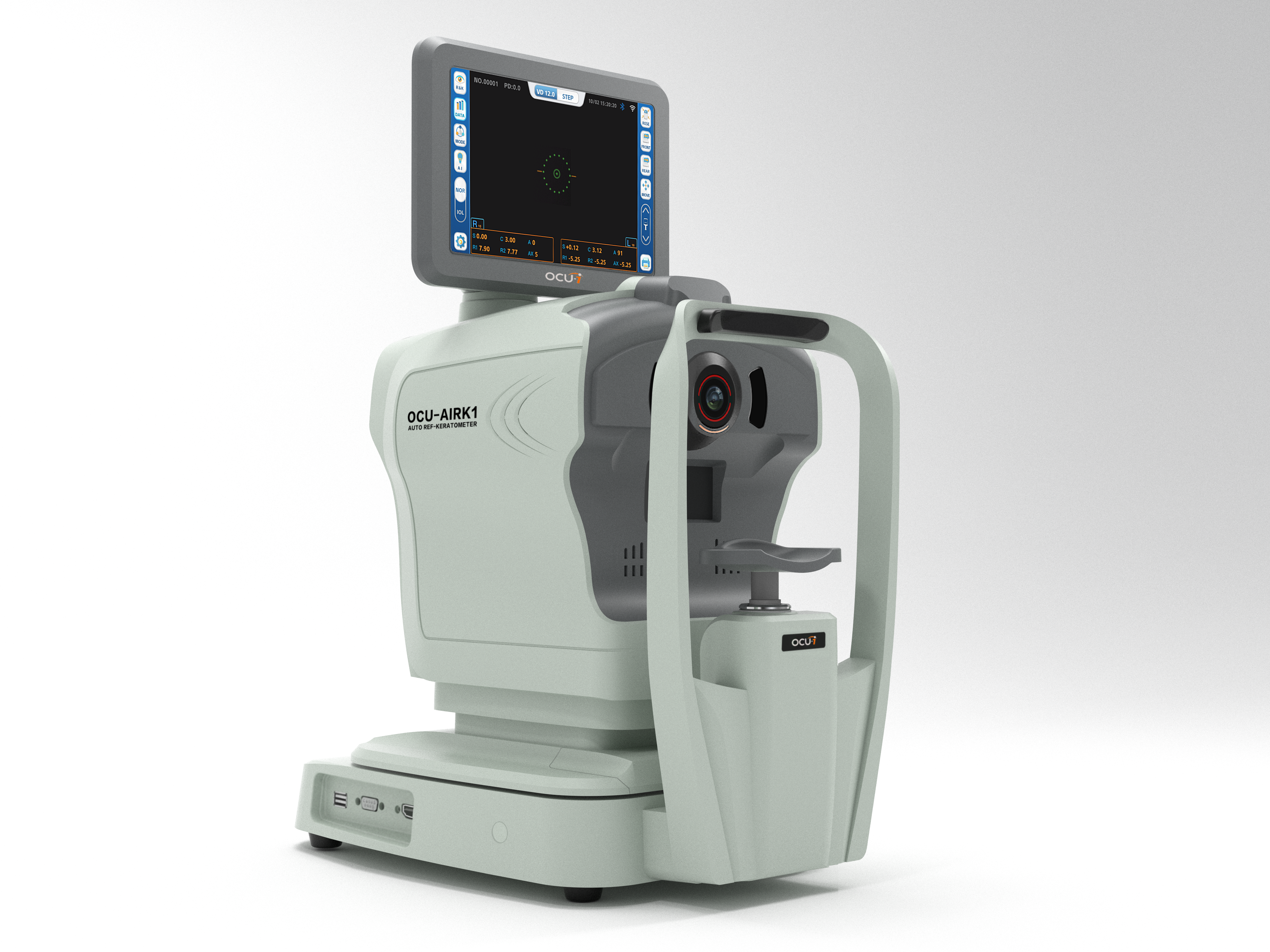

Intelligent Autoref/Keratometer

Key Features

  • Integrate Haar Like and Adaboost face recognition technology.
  • Built-in auto-cutter printer.
  • Easily realize customer self-service identification.
  • Equipped with various testing items such as REF, KER, K&R.
  • Automatic switching between left and right eyes, and eye position tracking measurement.
  • Adopt the latest Hartmann wavefront sensing technology to make the measurement more stable and accurate.
  • Includes multiple measurement modes such as automatic dual eye, automatic single eye, and manual.
Request Inquiry

Technical Specifications

  • Vertex distance:0.0mm,12.00mm,13.5mm,15.00mm
  • Spherical Power: -30.00D~ +25.00D, (VD=12mm, Step Distance: 0.12D/0.25D)
  • Cylindrical Power: 0.00D~12.00D (Step Distance: 0.12D/0.25D)
  • Cylinder Axis: 1°~180° (Step Distance: 1°)
  • Cylinder symbol: -, +, ±
  • Min. Measurable Pupil Diameter: 2.0mm
  • Corneal Curvature Radius: 5.0~13.00mm (Step Distance: 0.02mm)
  • Printer: Automatic paper cutting thermal printer
  • Monitor: Color LCD
  • Power supply:AC100-240V 50/60HZ
  • Electric Power:75VA
  • Dimension: 500×290×510mm
  • Fuse:2A 250V
