OCU-SL1 5-Step Slit Lamp
Key Features
- Outstanding Optic Quality ensures a comfortable view
- Parallel type Galilean system
- LED illumination with long lifetime
- 5-step magnifications
- Tower type slit lamp with broad beam, wide field and high depth of field
- Interface for laser and applanation tonometer reserved
Request Inquiry
Technical Specifications
- Model: S5
- Illumination Type: Tower Type
- Illumination Source: Imported LED Lamp
- Max Illumination Intensity: 60000 Lux
- Microscope Type: Parallel type, Galilean system

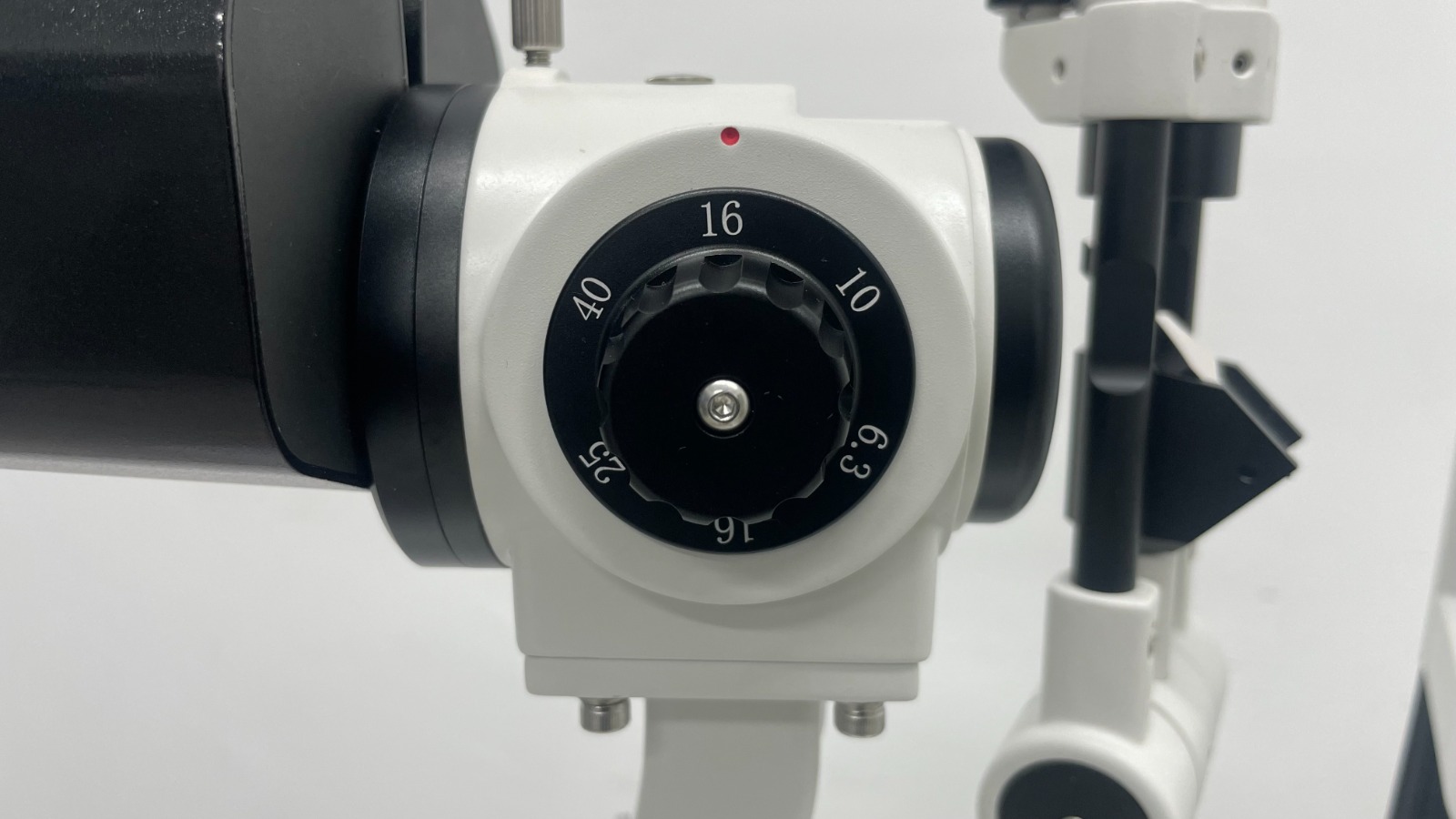

- Magnification Changer: Revolving drum
- Eyepiece: 12.5X
- Magnification: 6X, 10X, 16X, 25X, 40X
- Visual Field Diameter: 6X: 33mm, 10X: 22mm, 16X: 14mm, 25X: 8.5mm, 40X: 5.5mm
- Diopter Adjustment: -7D ~ +7D
- Pupil Range: 52mm ~ 82mm
- Brightness: Continuously adjustable
- Slit Image Width: 0mm ~ 14mm continuous
- Slit Image Length: 1mm ~ 14mm continuous
- Slit Image Angle: 0° ~ 180° continuous rotation
- Illumination Tilting: 5°, 10°, 15°, 20°
- Slit Aperture Size: Φ14, Φ10, Φ5, Φ3, Φ1, Φ0.2 mm & 1 ~ 14mm continuous
- Filter: Heat absorption, Grey, Red-free (Green), Cobalt blue
- Fixation: Red LED 3.5V
- Image Collector: None
- Background Illumination: None
- Input Voltage: 70VA
- Input Power: 100V ~ 240V, 48 ~ 62Hz
- External Packing: Carton box
- Dimension: 740 × 650 × 450 mm
- Gross Weight: 23 kg
