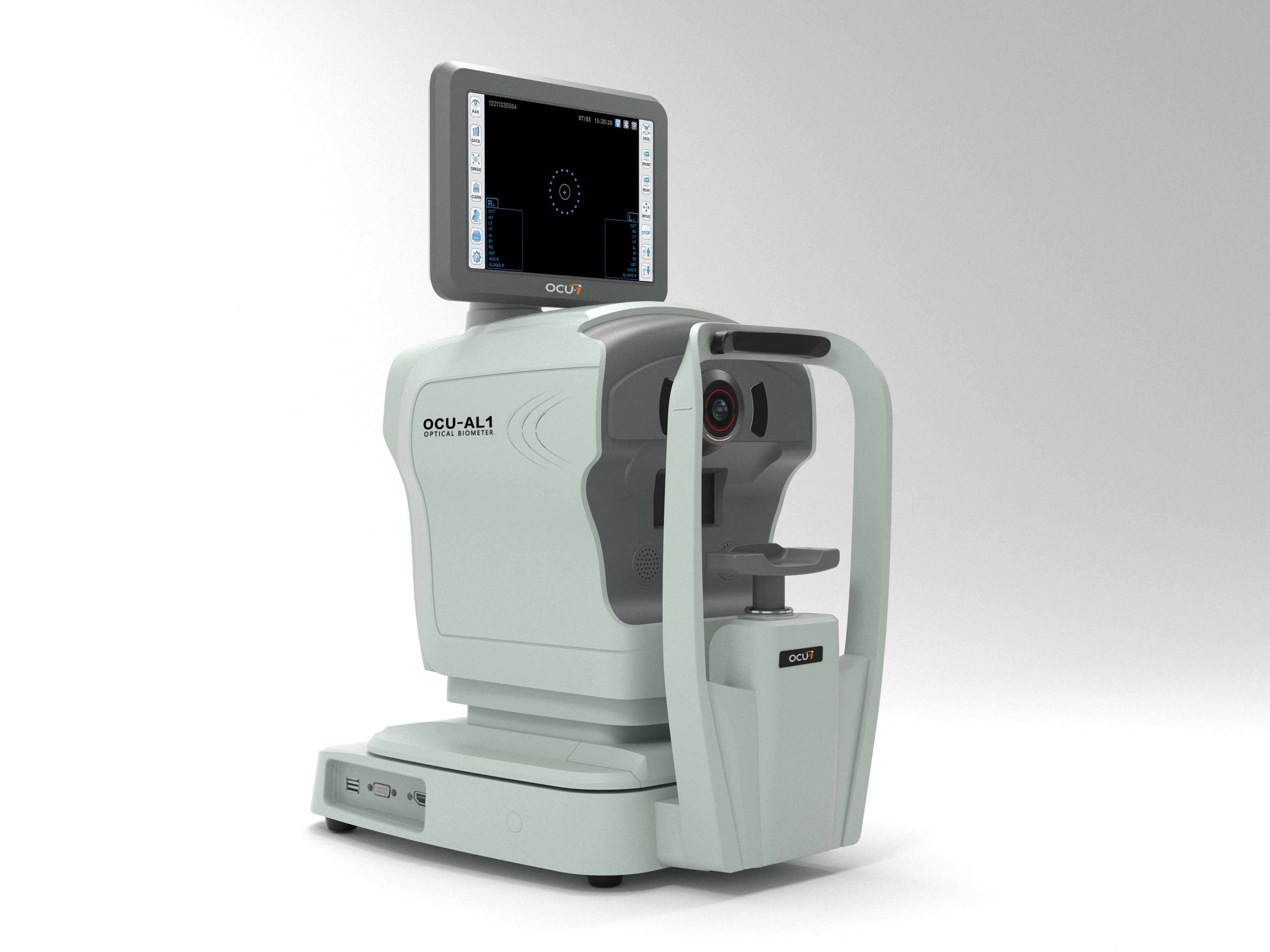

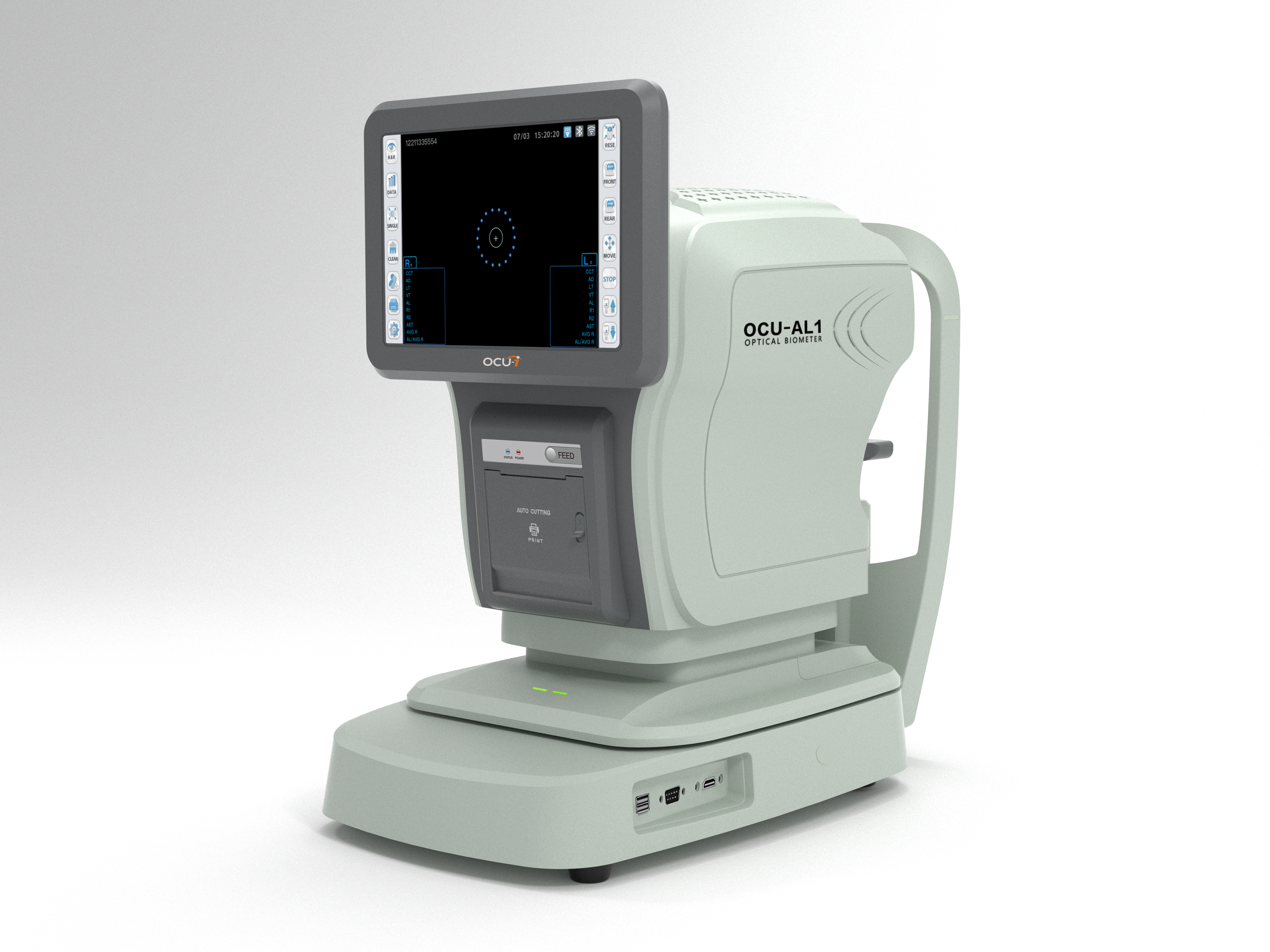

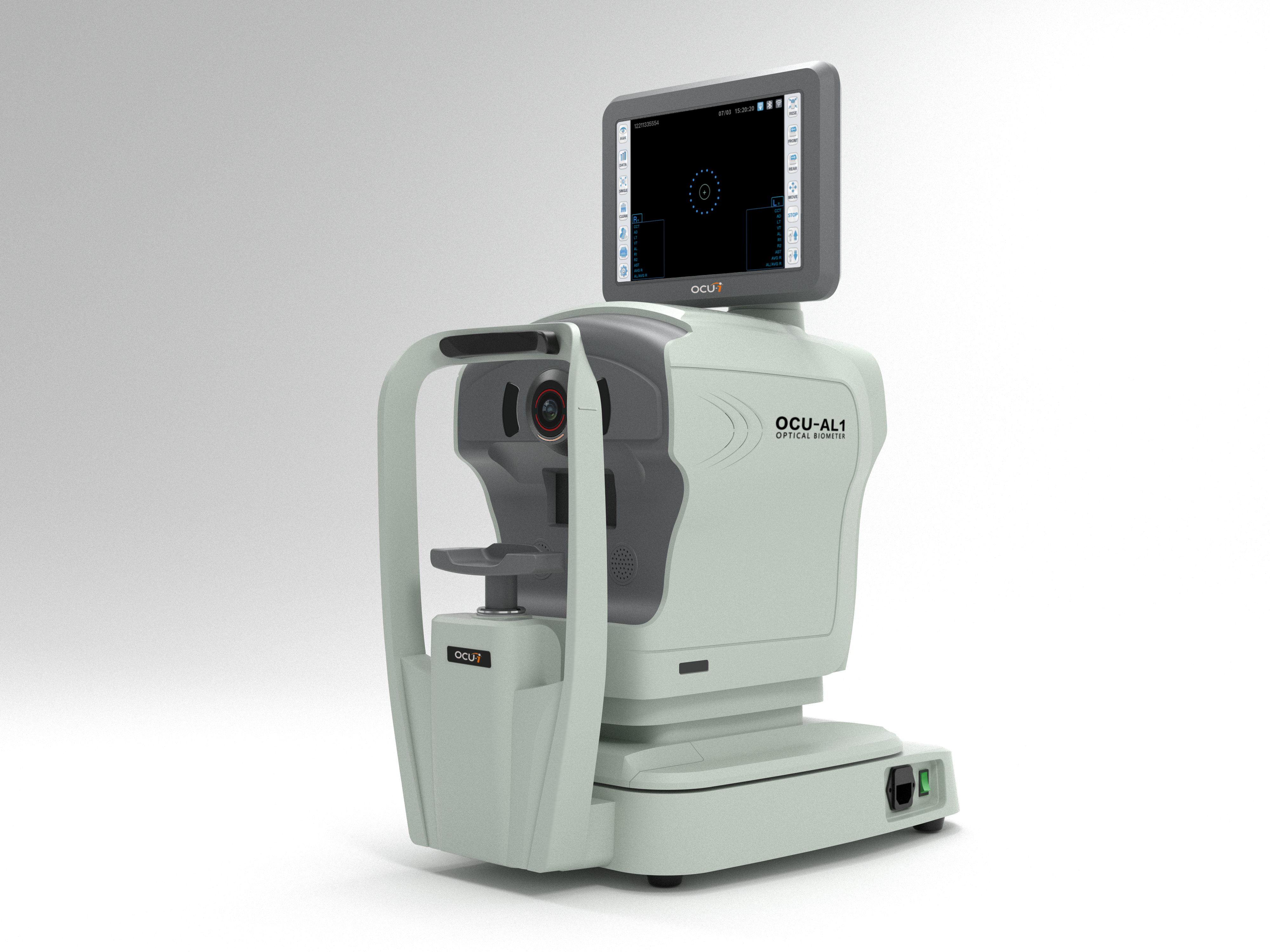

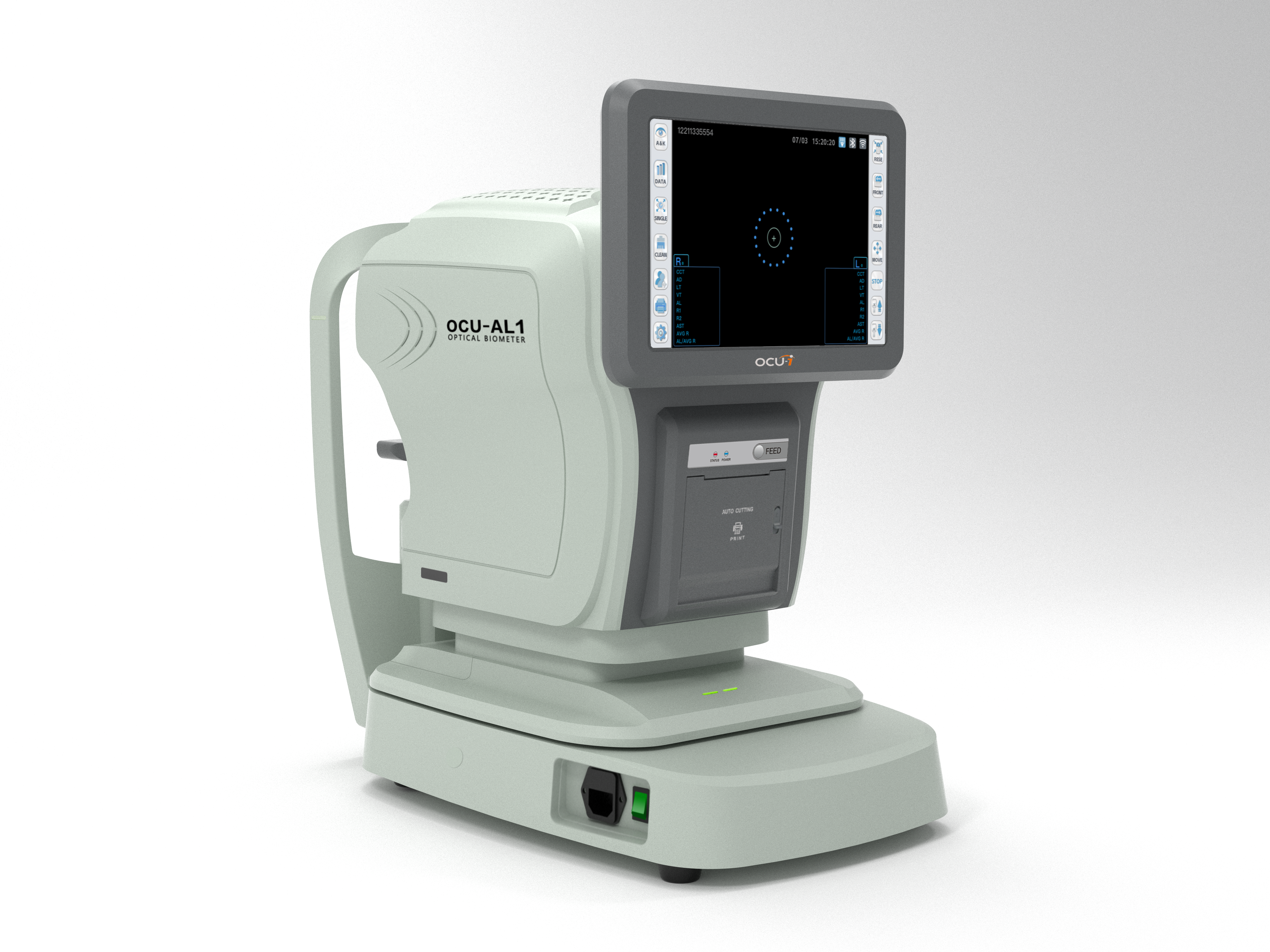

AL1

Optical Biometers
Optical Biometers
Optical Biometers
Optical Biometers
Optical Biometers

Optical Biometers

Key Features

  • The OCU-AL1 Biometer utilizes low-coherence interference technology to deliver precise and rapid measurements of the parameters.
  • The device supports the measurement and recording of multiple parameters including AL, KER, CCT, AD, LT, VT, WTW, and PS.
  • Equipped with advanced 3D fast measurement technology, it offers measurement of both eyes with a single-button operation.
  • Measurements can be corrected according to the highest peak value measured.
  • 10.1 inch high-definition, full-touch, LCD screen, no handle required, convenient and fast operation.
  • Built-in customer management system, easy to record and store customer information.
Request Inquiry

Technical Specifications

  • Axial Length (AL): 15-40mm
  • Standard Deviation of Axial Length: ±30µm
  • Axial Length Resolution: 0.01mm
  • Corneal Curvature (KER): 5-13mm
  • Standard Deviation of Corneal Curvature (KER): ±0.05mm
  • Corneal Curvature Resolution (KER): 0.01mm
  • Axis: 0°-180°
  • Central Corneal Thickness (CCT): 0.2-0.8mm
  • Anterior Chamber Depth (AD): 1.3-9.0mm
  • Lens Length (LT): 0.3-7.5mm
  • White to White (WTW): ≤16mm
  • Pupil Size (PS): ≤16mm
