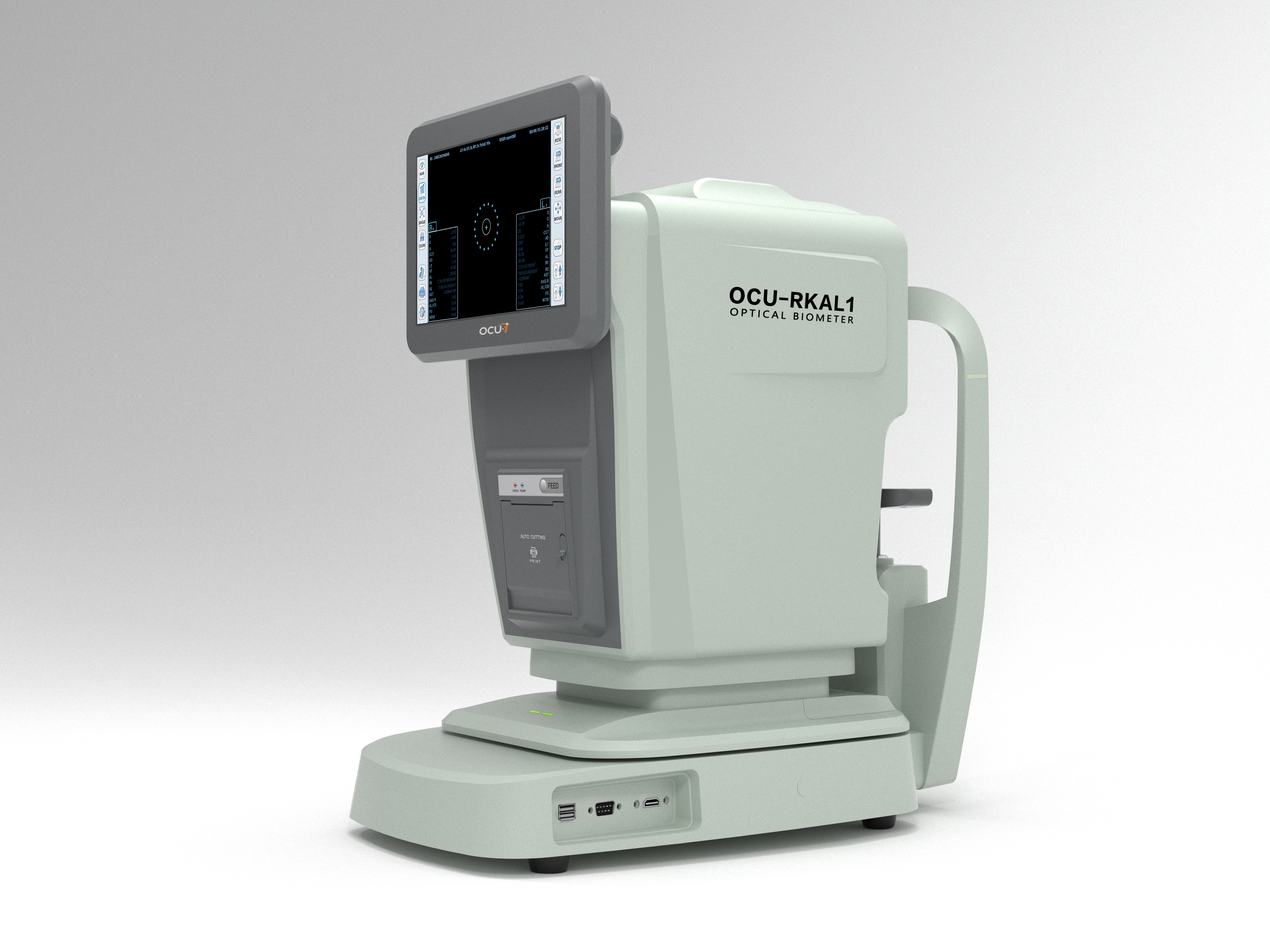

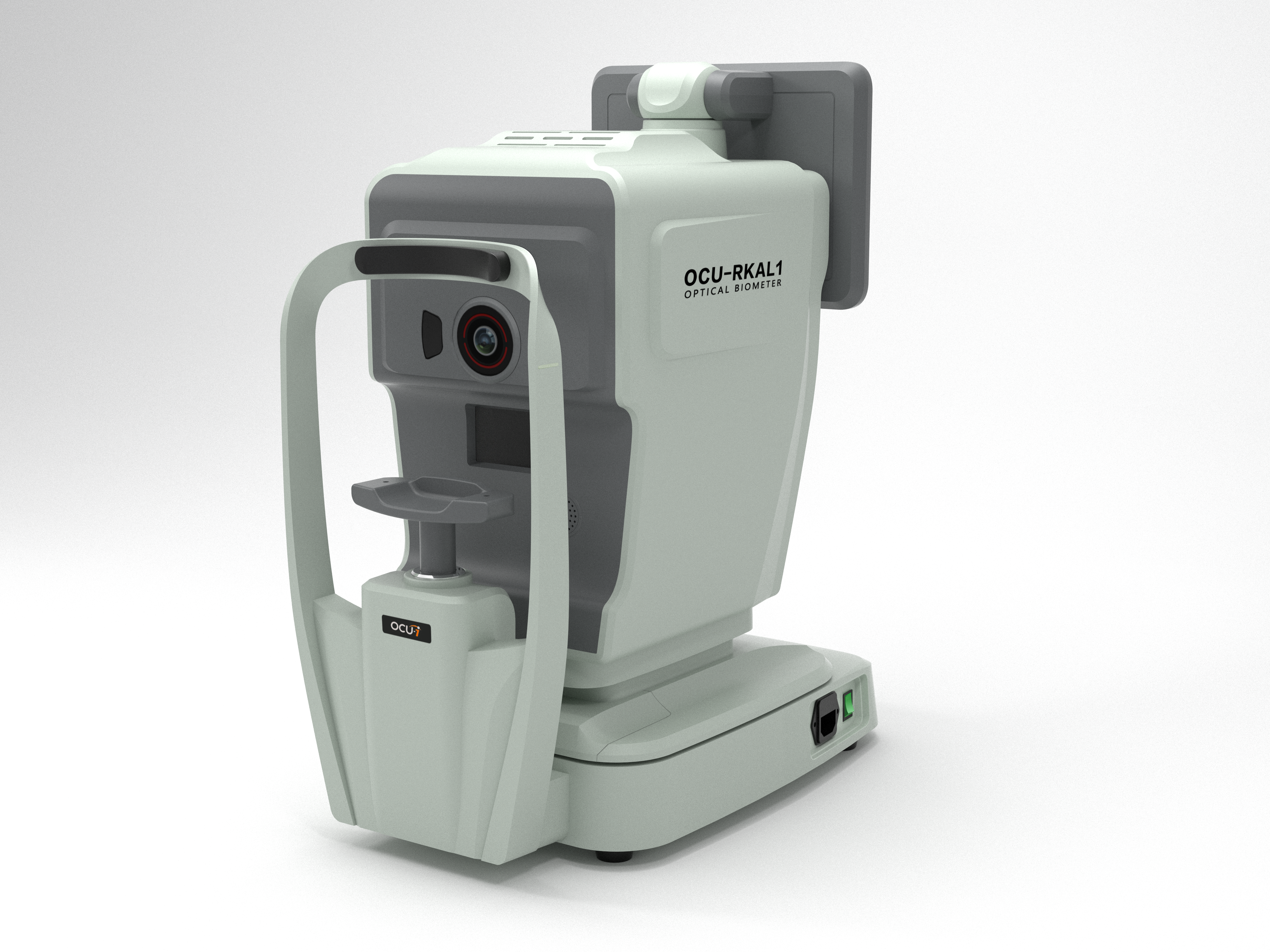

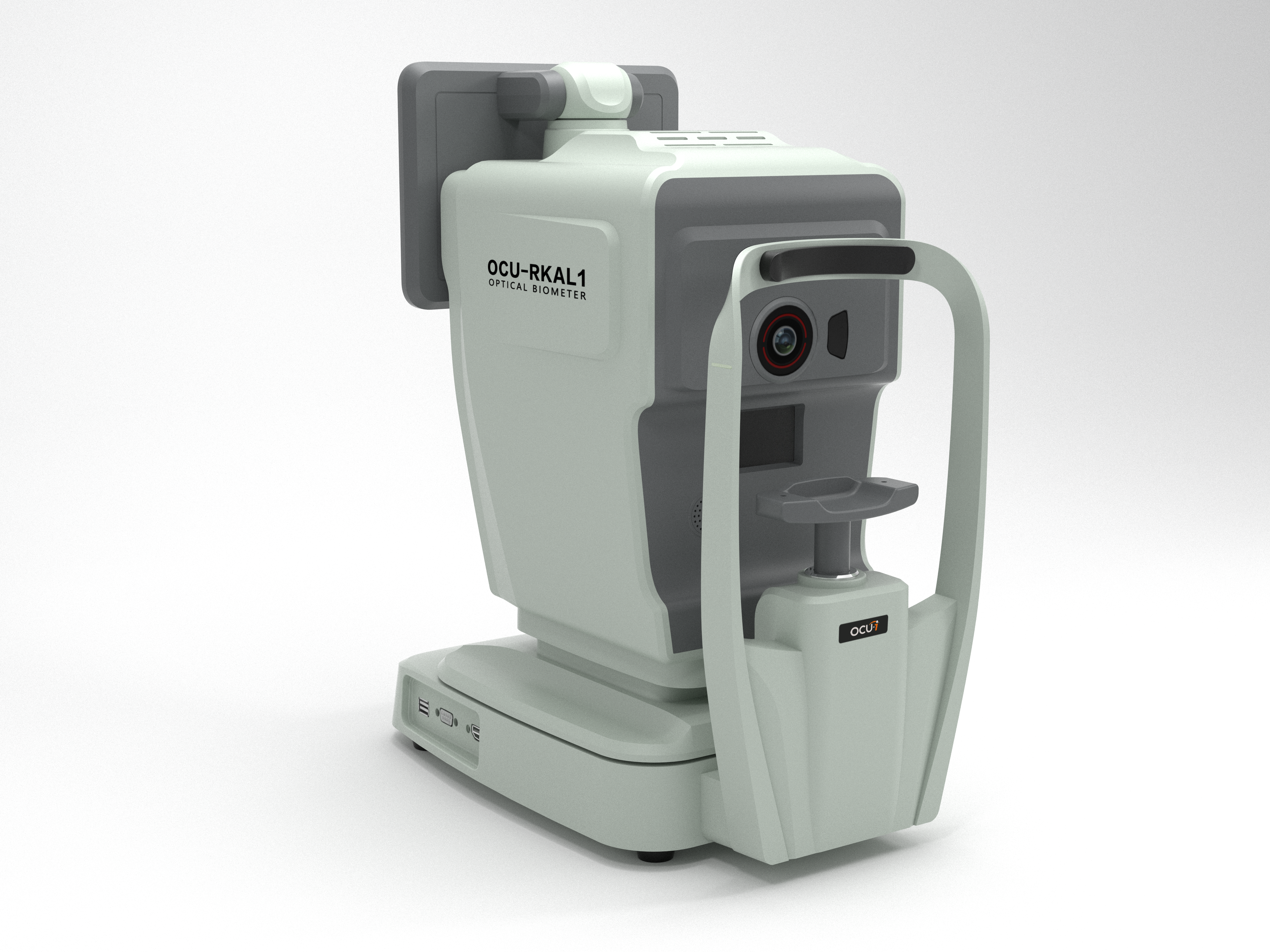

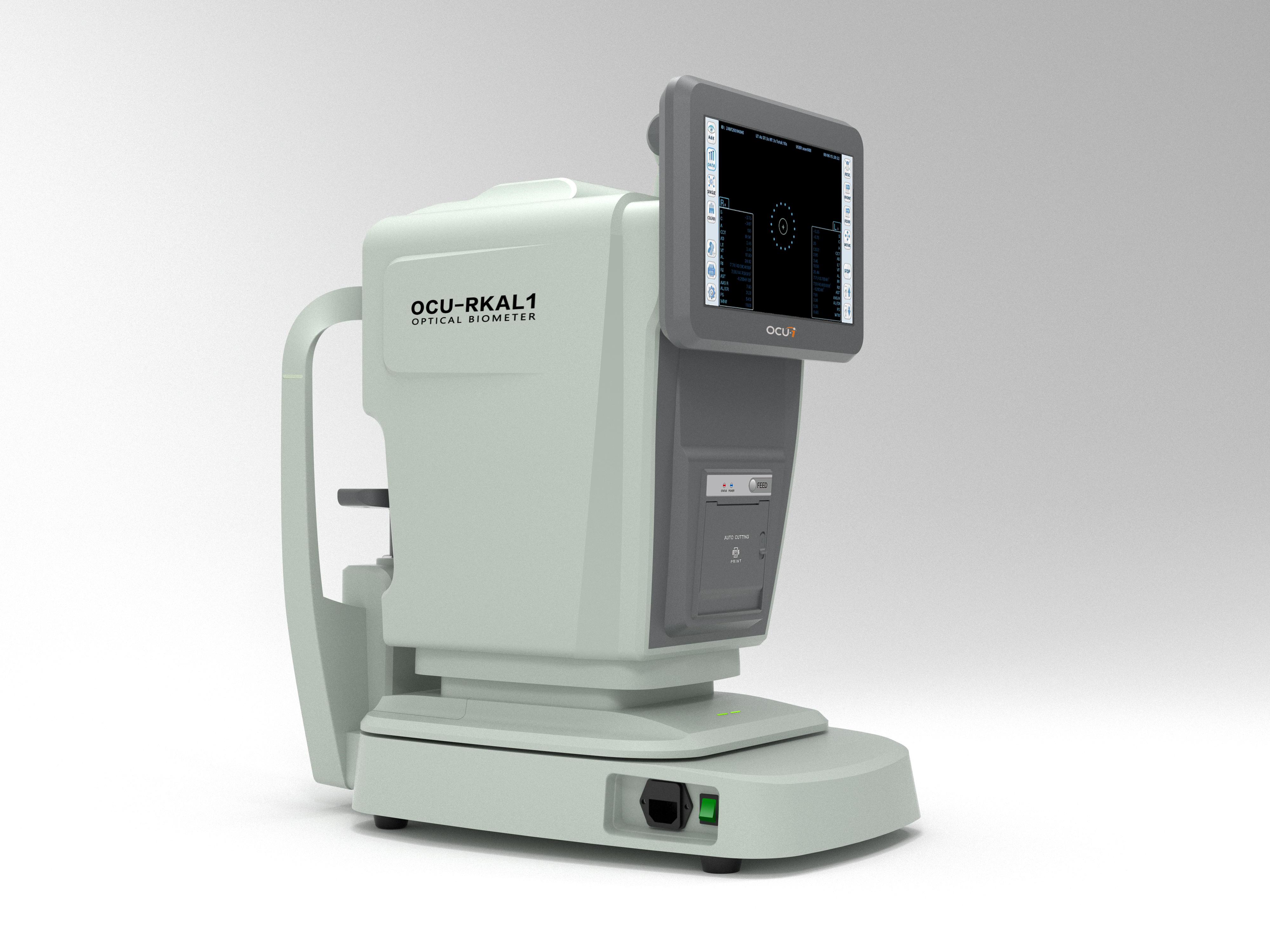

Optical Biometer/Autoref Combination
Key Features
- The system provides a professional-grade data inspection result output table that is optimized for direct printing on both thermal and A4 paper formats.
- A built-in database is included to securely store comprehensive customer inspection results.
- The system features an intuitive data statistics function, enabling efficient statistical analysis.
- With robust data import and export functionality, seamless data exchange between machines is effortlessly achieved.
Request Inquiry
Technical Specifications
- Axial Length: 15mm ~ 40mm
- Axial Length Deviation: ±0.03mm
- Vertex Distance: 0.0mm, 12.00mm, 13.5mm, 15.00mm
- Spherical Power: -30.00D~+25.00D (VD=12mm, Each step: 0.12D/0.25D)
- Cylinder Power: 0.00D~12.00D (Each step: 0.12D/0.25D)
- Axis: 1°~180° (Each step: 1°)
- Cylinder Symbol: -, +, ±
- Minimum Measurable Pupil Diameter: 2.0mm
- Radius of Curvature: 5.0~13.00mm (Each step: 0.02mm)
- Central Corneal Thickness (CCT): 0.2-0.8mm
- Anterior Chamber Depth (AD): 1.3-9.0mm
- Lenticular Thickness (LT): 0.3-7.5mm
- White-to-white Diameter (WTW): ≤16mm
- Pupil Diameter (PS): ≤16mm
